MODULAR

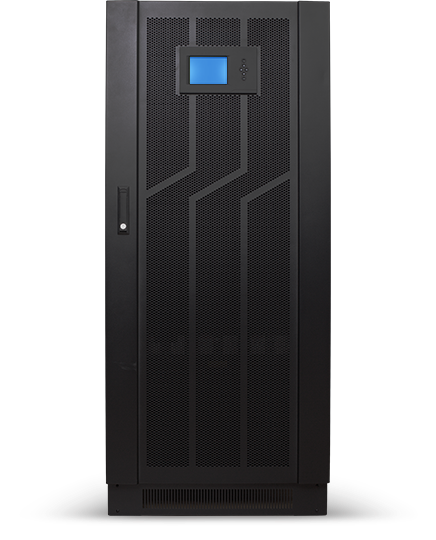

Amberwave AMB 100/100BAT/200

Amberwave modular UPS solutions offer full modularity using latest technologies to achieve highest efficiency and reliability ratings. Each UPS power module contains all the hardware to function as an independent UPS unit.

• Online double conversion technology
• Power range from 20 kW to 200 kW in a single frame

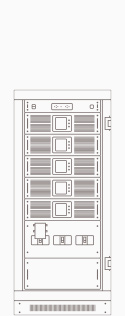

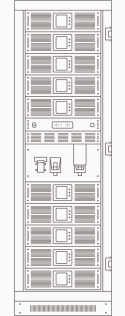

• 100 kW and 200 kW frames

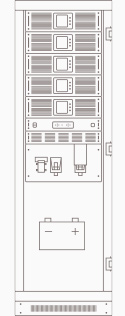

• Internal battery option
• Parallel redundancy (N+X) per frame
• Up to four frames in parallel
• Hot - swappable power modules
  (replacement in full online mode)
• Efficiency up to 98%
• Input harmonic distortion less than 3%
• High power density
• Low total cost of ownershipEach

Each power module is completely independent and shares no common components. Static bypass, rectifier, inverter, logic control, LCD display, control panel and battery charger are integrated in each power module. Output communication data (monitoring) is gathered and controlled by an independent hot-swappable monitoring module. Power module settings are auto adjusted by monitoring module and need no user interference in time of adding new or performing power module replacement.
